C3-525
2-Way Convertible Component / Coaxial System: 5.25-inch (13 cm) Woofer, 1-inch (2,5 cm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-525 system features 5.25-inch (13 cm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Algemene Specificaties:
| Continuous Power Handling (RMS) |
75 W |
| Peak Music Power |
225 W |
| Recommended Amplifier Power (RMS) |
25 - 150 W / Ch. |
| System Efficiency |
90.0 dB @ 1 W / 1 m |
| System Nominal Impedance |
4 Ω |
| System Frequency Response |
48 Hz - 25 KHz ± 3 dB |

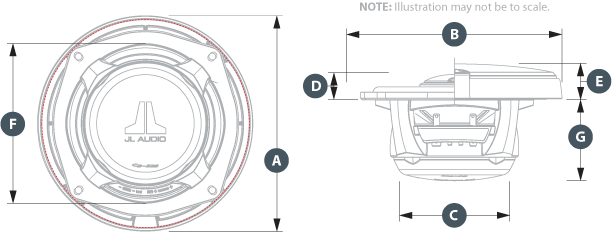

Specificaties Woofer:
| Frame Outer Diameter* (A) |
147 mm |
| Grille Tray Outer Diameter (B) |
152 mm |
| Motor Outer Diameter** (C) |
86 mm |
| Frontal Coaxial Tweeter Protrusion*** (D) |
18 mm |
| Frontal Grille Protrusion**** (E) |
1.25 mm |
| Mounting Hole Diameter (F) |
116 mm |
| Mounting Depth (G) |
58 mm |
* Houdt geen rekening met montagetabbladen
** Omvat geen decoratieve dekking
*** Frontale coaxiale tweeteruitsteeksel gemeten vanaf het montageoppervlak
**** Uitsteeksel frontgrille gemeten vanaf het montageoppervlak
Specificaties Tweeter:
| Flush Mount Fixture Diameter (A1) |
2.54 mm |
| Surface Mount Fixture Diameter (A2) |
49 mm |
| Flush Mount Mounting Hole Diameter (B) |
48 mm |
| Flush Mount Fixture Mounting Depth (C) |
18 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) |
8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) |
24 mm |
Specificaties Crossover:
| Breedte (W) |
85 mm |
| Hoogte (H) |
37 mm |
| Diepte (D) |
120 mm |
